Sinopower P/N |

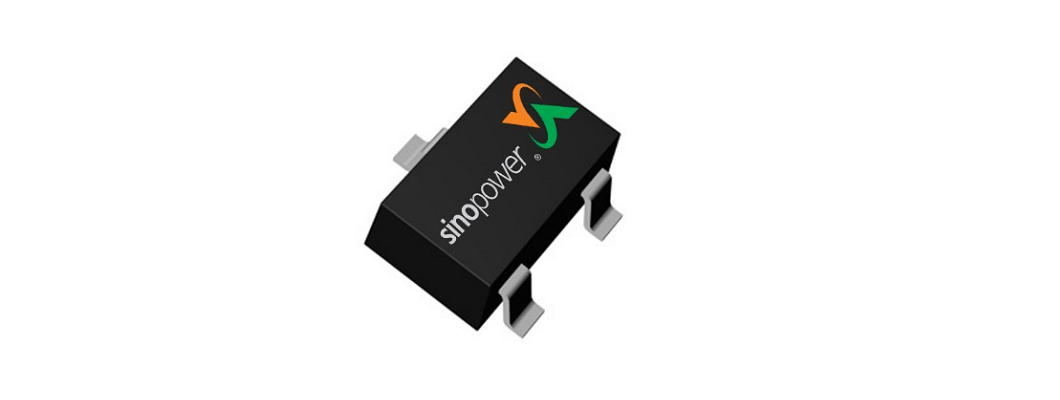

SM2363PMAC | |
|---|---|---|
Package |
SOT-23 | |
|
Status
|
Engineer sample | |
|
Replacement Part
|
||
|
Cross Reference
|
Manufacturer
|
|
|
Part Number
|
||
|
Cfg.
|
p | |
|
ESD
|
Yes | |
|
SKY
|
||
|
BD
|
||
|
BV(V)
|
-60 | |
|
VGS(±V)
|
20 | |
|
ID(A)
|
TC=25
|
|
|
TA=25
|
-1.8 | |
|
Vth(V)
|
MIN.
|
-1 |
|
TYP.
|
-2 | |
|
MAX.
|
-3 | |
|
RDS(on)
(mΩ MAX.) |
10V
|
225 |
|
4.5V
|
300 | |
|
6V
|
||
|
5V
|
||
|
4V
|
||
|
3.7V
|
||
|
3.3V
|
||
|
3.1V
|
||
|
2.7V
|
||
|
2.5V
|
||
|
1.8V
|
||
|
1.5V
|
||
|
Rg(Ω)
|
TYP.
|
7 |
|
MAX.
|
||
|
Ciss(pF)
TYP. |
290 | |
|
Coss(pF)
TYP. |
31 | |
|
Crss(pF)
TYP. |
17 | |
|
Qg(nC)
10V |
TYP.
|
7.2 |
|
MAX.
|
11 | |
|
Qg(nC)
4.5V |
TYP.
|
3.5 |
|
MAX.
|
||
|
Qgs(nC)
|
1.3 | |
|
Qgd(nC)
|
1.4 | |
· Power Management in DC/DC Converter.
· Load switch.
· Load switch.
